Firmstone (Tianjin) International Limited is one of the leading manufacturers and suppliers of welded gabion wall in China. We are committed to providing high quality customized products for global clients. If you're going to buy durable welded gabion wall made in China, welcome to get pricelist from our factory.

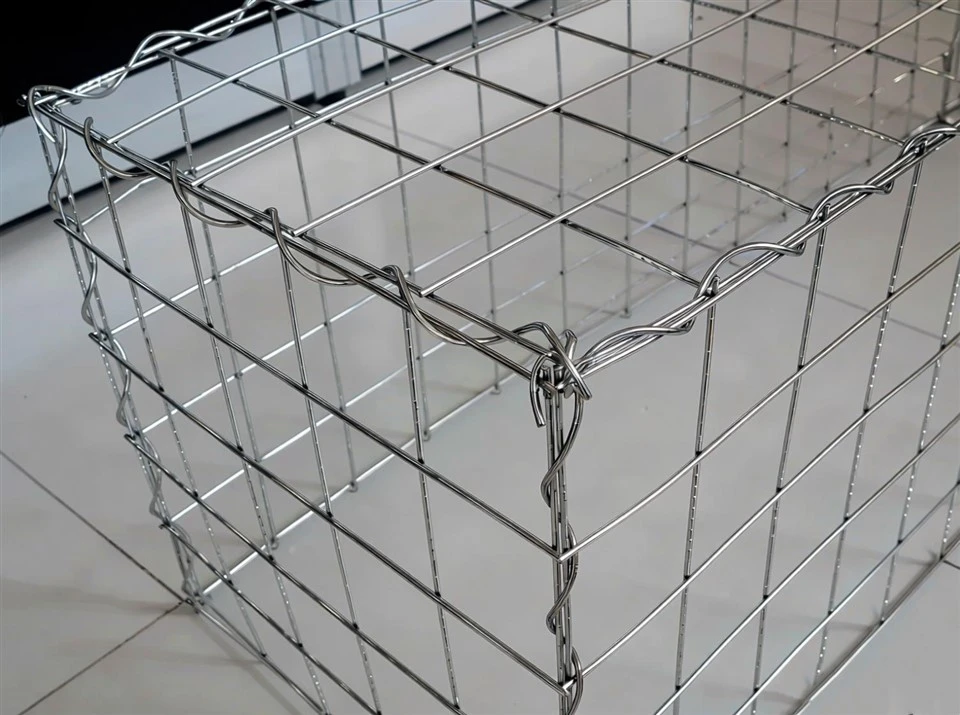

Welded Gabion Wall – modern rigid landscape and protective retaining structure for municipal hardscape and garden projects. Assembled from spot-welded galvanized or PVC coated steel wire panels into standardized wall cages. Rigid welded mesh offers superior structural rigidity and flat surface without loosening or deformation, presenting neat uniform stacking – combining retaining protection with high landscape value. Galvanized or anti-aging PVC finishes for reliable outdoor corrosion/UV resistance. Ideal dual-function material for terrain reinforcement and scene beautification in modern landscape and municipal projects.
Product Specification
|
Box Size (L*W*H) m |
Mesh Size (mm) |
Mesh Wire Dia. (mm) |
Selvedge Wire Dia. (mm) |
Lacing Wire Dia. (mm) |
High zinc-Zinc Coating Min (g/m2) |
General Zinc-Zinc Coating Min (g/m2) |
Tensile Strength (MPa) |
Surface Area (m2/box) |
Weight per Box (kg) |
Typical Applications |
|
2 * 1 * 1 |
80*100 |
2.7 |
3.4 |
2.2 |
245 |
60 |
350-550 |
10.0 |
14.5 |
River bank protection, retaining walls |
|
2 * 1 * 1 |
60*80 |
2.5 |
3.2 |
2.2 |
245 |
60 |
350-550 |
10.0 |
16.8 |
Small stone filling, landscape walls |
|
2 * 1 * 1 |
100*120 |
3.0 |
3.7 |
2.2 |
245 |
245 |
350-550 |
10.0 |
15.2 |
Large rock, heavy duty applications |
|
3 *1 * 1 |
80 *100 |
2.7 |
3.4 |
2.2 |
245 |
60 |
350-550 |
14.0 |
20.3 |
Retaining walls, slope stabilization |
|
3 *1 * 1 |
100*120 |
3.0 |
3.7 |
2.2 |
245 |
60 |
350-550 |
14.0 |
21.3 |
Heavy retaining walls, bridge abutments |
|
4 * 1 * 1 |
80*100 |
2.7 |
3.4 |
2.2 |
245 |
60 |
350-550 |
18.0 |
26.1 |
Long retaining walls, channel linings |
|
1 *1 * 1 |
80*100 |
2.5 |
3.2 |
2.2 |
245 |
60 |
350-550 |
6.0 |
8.7 |
Small projects, garden landscaping |
|
2 *1 * 0.5 |
80*100 |
2.7 |
3.4 |
2.2 |
245 |
60 |
350-550 |
7.0 |
10.2 |
Mattress, shallow slope protection |
|
3 * 1 * 0.5 |
80*100 |
2.7 |
3.4 |
2.2 |
245 |
60 |
350-550 |
10.0 |
14.5 |
River mattress, erosion control |
|
6 *2 * 0.3 |
80*100 |
2.7 |
3.4 |
2.2 |
245 |
60 |
350-550 |
16.8 |
24.4 |
Renno mattress, river bed protection |
|
2 * 1 * 1 |
80*100 |
2.7 |
3.4 |
2.2 |
350 |
60 |
350-550 |
10.0 |
14.8 |
High corrosion, marine environments |
|
2 * 1 * 1 |
80*100 |
3.0 |
3.7 |
2.2 |
245 + PVC |
60 + PVC |
350-550 |
10.0 |
16.5 |
Decorative walls, landscape design |
Material
This welded gabion wall adopts high-quality anti-corrosion composite materials for stable outdoor performance. The main structure consists of sturdy welded steel wire panels with two mainstream surface treatments: hot-dip galvanized and PVC coated finish. The galvanized substrate provides excellent basic rust resistance and structural stability, while the upgraded PVC coating adds anti-UV, anti-fading and wear-resistant properties for complex landscape environments. All steel wires feature uniform texture and strong tensile strength, ensuring firm welding joints that are not easy to crack or fall off. Matched standard galvanized binding wires are used for integral assembly, maintaining consistent anti-corrosion performance and ensuring tight, stable overall structural connection.
Product Application

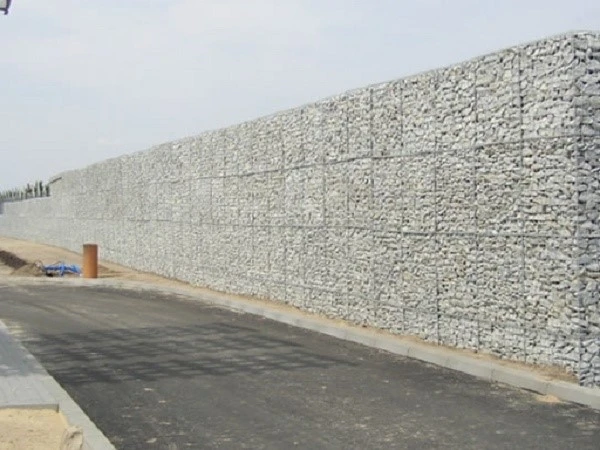

With rigid structure, tidy appearance and outstanding environmental compatibility, welded gabion walls are widely used in high-standard landscape and municipal projects. The main application scenarios include municipal landscape retaining wall construction for terrain stabilization and urban beautification, villa garden decorative stone wall modeling, park terrace reinforcement and layered landscape construction, road greening side wall protection, as well as scenic area viewing gabion wall construction, realizing the perfect combination of safety protection and landscape aesthetics.
Production Process

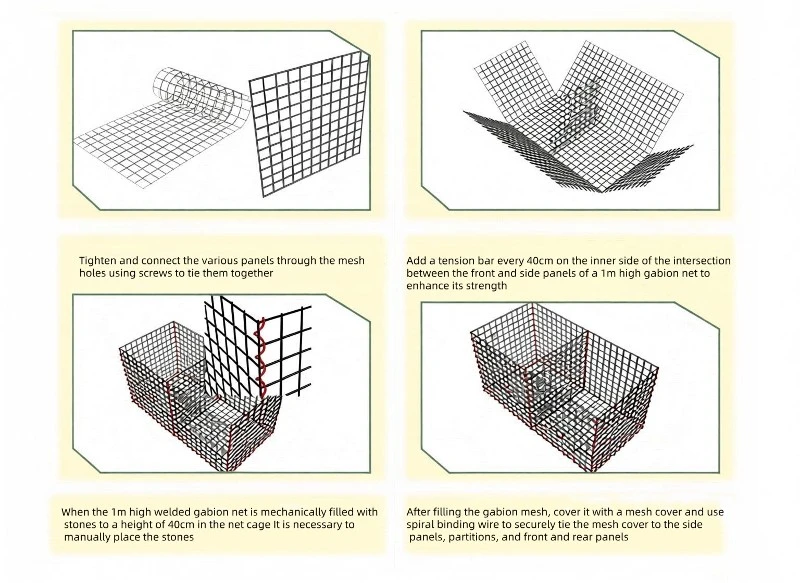

The product adopts standardized and precise production procedures to guarantee stable quality: firstly, straighten qualified galvanized or PVC coated steel wires and process them into flat rigid mesh panels through professional spot welding; secondly, cut the integrated mesh panels into precise dimensions according to customized gabion unit designs; thirdly, fold the panels with pre-bent edges to form complete standard box structures; fourthly, conduct strict surface inspection to test welding point firmness and screen out defective products; finally, bundle flat folded gabion units neatly for space-saving transportation and convenient on-site assembly and wall stacking.
Precaution for Use
During installation and stacking, avoid violent impact and extrusion on welding points to prevent solder cracking and structural damage. Fill stones uniformly and compactly to ensure even mesh stress and avoid local deformation or collapse. Keep gabion units neatly arranged in rows and layers to ensure overall wall flatness and structural stability. For PVC coated products, avoid scratching with sharp tools to protect the complete anti-aging coating. Conduct regular routine inspections on welding joints and assembly tightness for long-term outdoor use to maintain structural safety and ornamental effect.
