Firmstone (Tianjin) International Limited is one of the leading manufacturers and suppliers of double wire 3d mesh panels in China. We are committed to providing high quality customized products for global clients. If you're going to buy durable double wire 3d mesh panels made in China, welcome to get pricelist from our factory.

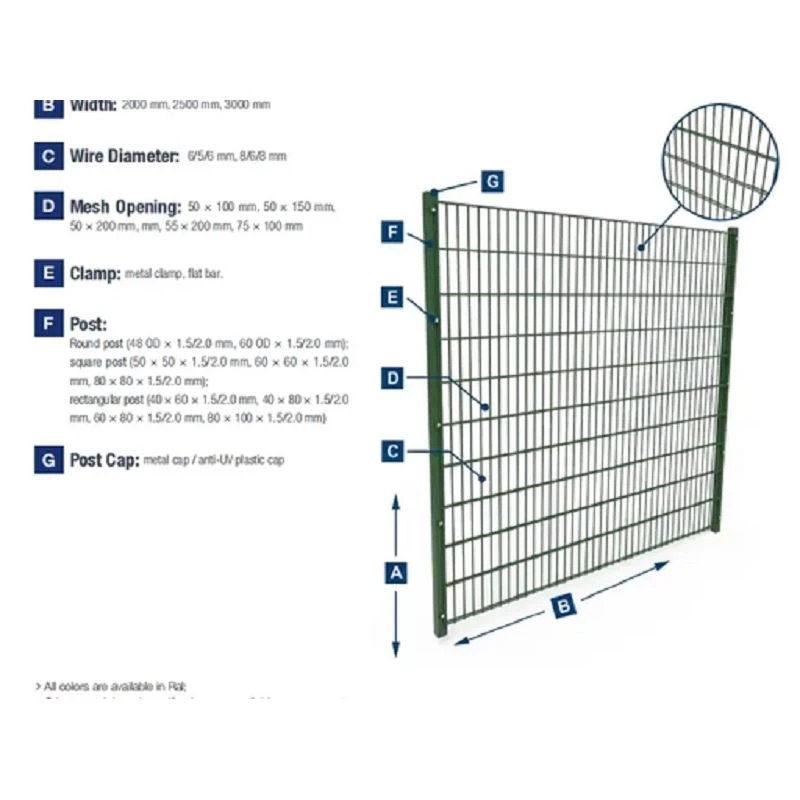

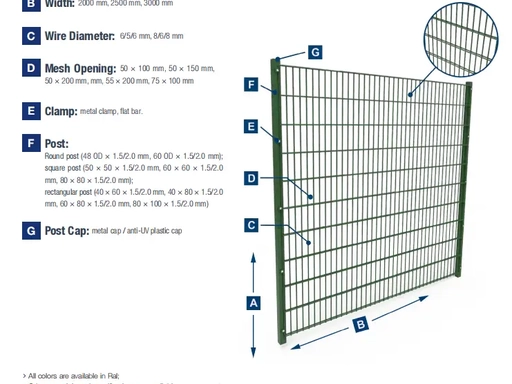

Double Wire 3D Mesh Panel – medium-high security fencing with enhanced strength and anti-intrusion performance. Unique double parallel thick horizontal wires spot-welded with vertical wires for ultra-stable grid framework. 3D V-bending ribs further strengthen rigidity and 3D support. Double-wire design greatly improves tensile, impact and load resistance – extremely resistant to bending or breakage under collision, pulling and vandalism. Solid welds, uniform mesh, excellent stability – reliable medium-high security. Optional anti-corrosion finishes for outdoor use – durable high-strength barrier for public and industrial sites.
Product Specification
|
Fence Type |
Horizontal Wire (mm) |
Vertical Wire (mm) |
Mesh Size (mm) |
Panel Height (m) |
Panel Width (m) |
Zinc Coating Min (g/m2) |
Post Size (mm) |
Surface Treatment |
Typical Applications |
|
2D Double Wire |
2*6.0 |
5.0 |
50*200 |
1.03 |
2.50 |
200 |
60*60*2.0 |
Galvanized + Powder Coated |
Garden, residential boundary |
|
2D Double Wire |
2*6.0 |
5.0 |
50*200 |
1.23 |
2.50 |
200 |
60*60*2.0 |
Galvanized + Powder Coated |
School, park perimeter |
|
2D Double Wire |
2*6.0 |
5.0 |
50*200 |
1.53 |
2.50 |
200 |
60*60*2.0 |
Galvanized + Powder Coated |
Commercial, industrial fence |
|
2D Double Wire |
2*6.0 |
5.0 |
50*200 |
1.83 |
2.50 |
200 |
60*60*2.5 |
Galvanized + Powder Coated |
High security, warehouse |
|
2D Double Wire |
2*6.0 |
5.0 |
50*200 |
2.03 |
2.50 |
200 |
80*80*2.5 |
Galvanized + Powder Coated |
Prison, high security area |
|
2D Double Wire |
2*8.0 |
6.0 |
50*200 |
1.53 |
2.50 |
207 |
60*60*2.5 |
Galvanized + Powder Coated |
Heavy duty industrial, airport |
|
2D Double Wire |
2*8.0 |
6.0 |
50*200 |
1.83 |
2.50 |
207 |
80*80*2.5 |
Galvanized + Powder Coated |
High security, military base |
|
2D Double Wire |
2*8.0 |
6.0 |
50*200 |
2.03 |
2.50 |
207 |
80*80*3.0 |
Galvanized + Powder Coated |
Maximum security, prison |
|
3D Curved |
4.0 |
4.0 |
50*200 |
1.03 |
2.50 |
200 |
50*50*1.5 |
Galvanized + PVC Coated |
Garden, villa, residential |
|
3D Curved |
5.0 |
5.0 |
50*200 |
1.23 |
2.50 |
200 |
50*50*1.5 |
Galvanized + Powder Coated |
Park, school, playground |
|
3D Curved |
5.0 |
5.0 |
50*200 |
1.53 |
2.50 |
200 |
60*60*2.0 |
Galvanized + Powder Coated |
Commercial, factory boundary |
|
3D Curved |
5.0 |
5.0 |
50*200 |
1.83 |
2.50 |
200 |
60*60*2.0 |
Galvanized + Powder Coated |
Highway, railway side |
|
3D Curved |
5.0 |
5.0 |
50*200 |
2.03 |
2.50 |
200 |
60*60*2.5 |
Galvanized + Powder Coated |
Airport, high security |
|
3D Curved |
6.0 |
6.0 |
50*100 |
1.83 |
2.50 |
230 |
60*60*2.5 |
Galvanized + Powder Coated |
Heavy duty, anti-climb |
|
3D Curved |
6.0 |
6.0 |
50*100 |
2.03 |
2.50 |
230 |
80*80*2.5 |
Galvanized + Powder Coated |
Maximum security, prison |
Material
This high-strength 3D fence panel is made of premium hot-dip galvanized low carbon steel wire with optional customized surface finishing. The high-quality low carbon steel substrate features stable toughness, high tensile strength and excellent welding performance, ensuring firm connection between double horizontal wires and vertical wires without loose or broken solder joints. The overall hot-dip galvanizing treatment forms a dense anti-rust layer on the wire surface, effectively resisting daily wind, rain and atmospheric corrosion for long-term outdoor durability. To meet diverse environmental and aesthetic demands, the product supports secondary PVC colored coating treatment, adding anti-UV, anti-aging and decorative properties. The dual material collocation balances superior mechanical performance and long-term anti-corrosion capability.
Product Application
With high structural strength, excellent vandal resistance and stable security performance, double wire 3D mesh panels are widely applied in medium-high security boundary scenarios. They are mainly used for residential compound high-security fence protection to prevent unauthorized intrusion and ensure community safety, water plant perimeter closed isolation to protect public water supply facilities, transformer station safety isolation for power facility protection, commercial plaza boundary fence for standardized site management, as well as parking lot safety barrier for pedestrian and vehicle regional separation, providing stable and long-lasting safety defense for key public and commercial sites.
Production Process
The product adopts precise specialized production procedures tailored for double-wire structure: firstly, implement synchronous feeding and professional straightening for double horizontal wires to ensure consistent wire flatness and specification accuracy; secondly, complete automatic double-wire spot welding with vertical support wires to form integrated high-strength mesh sheets with uniform and firm solder joints; thirdly, conduct integral hydraulic bending to form standardized 3D curved reinforcing ribs and enhance three-dimensional structural stability; fourthly, finish surface anti-corrosion treatment through hot-dip galvanizing or secondary PVC coating according to demand; finally, carry out strict strength sampling test for quality inspection, and complete standardized bundled delivery matched with supporting fence posts for convenient on-site installation.
Precaution for Use

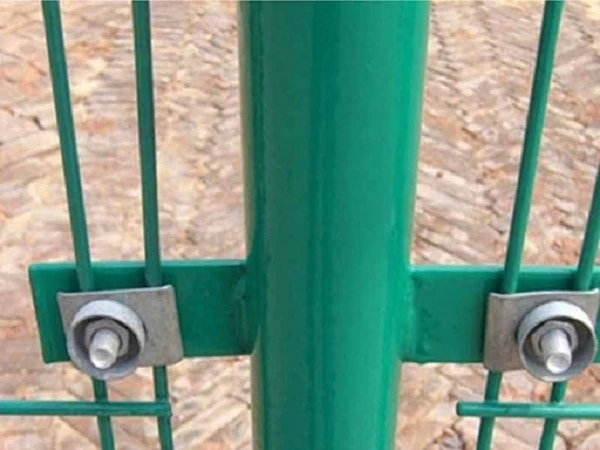

During installation, ensure vertical fixation of matching posts and firm connection with mesh panels to give full play to double-wire structural stability. Avoid violent impact and artificial cutting on welding joints to prevent local structural damage. For PVC coated models, prevent sharp object scratches to protect the complete anti-aging coating. Do not overstretch the mesh during installation to avoid internal stress deformation. Regularly check the tightness of connecting parts and the flatness of 3D bending ribs for long-term use to maintain sustained high-security performance.
Compare with Other Products
Compared with ordinary single-wire 3D panels, double wire 3D mesh panels have stronger tensile strength, impact resistance and anti-vandalism ability due to the double horizontal wire reinforcement, reaching a higher security grade. Different from common 2D flat panels, its 3D bending structure provides better wind resistance and structural stability. Though slightly higher in cost, it outperforms ordinary fences in durability and safety. With dual anti-corrosion options and integrated supporting accessories, it is more suitable for medium-high security public and commercial sites than conventional civil isolation fences.
