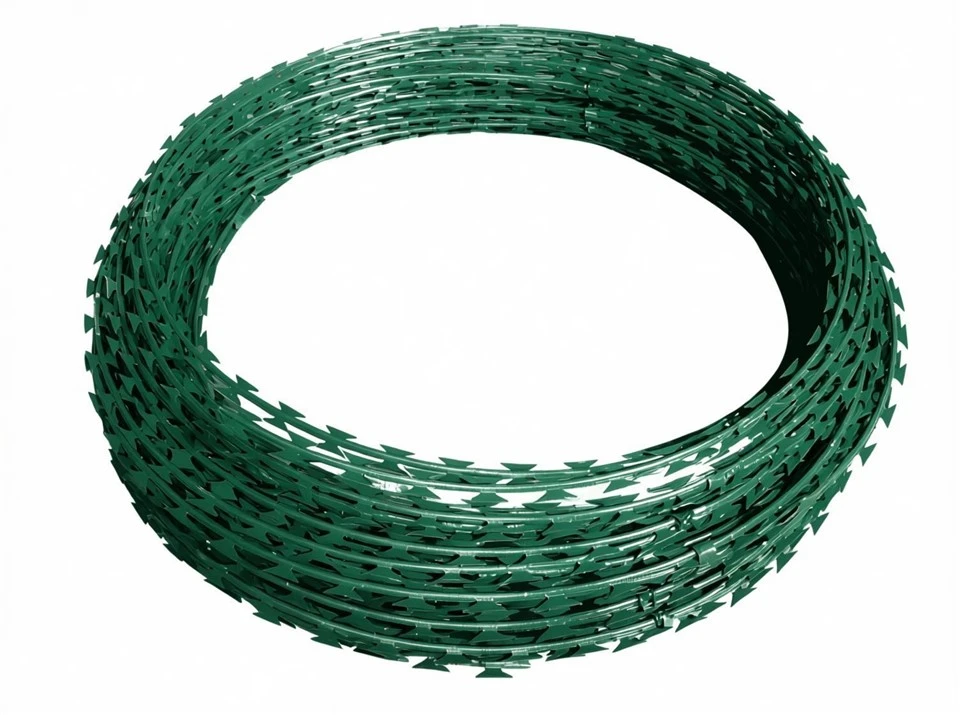

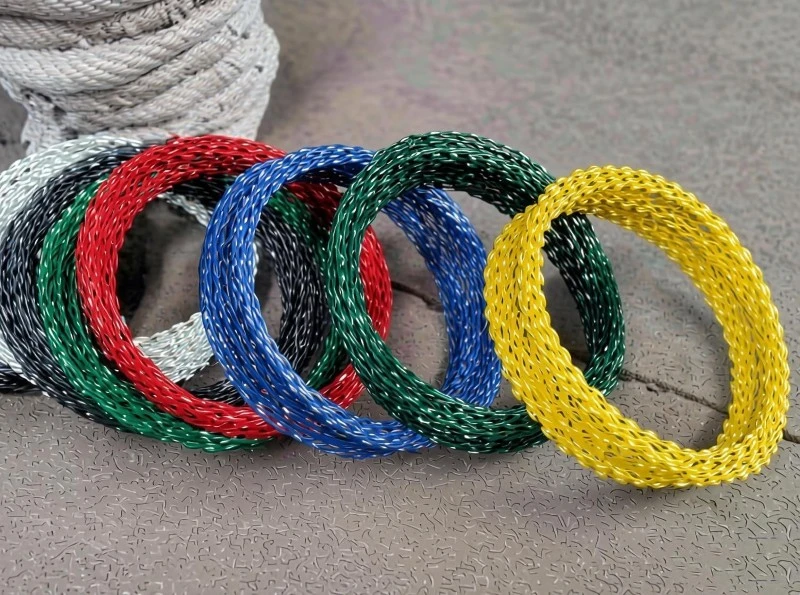

PVC Coated Razor Fence Wire – composite landscape security material combining anti-theft protection with aesthetics. Hot-dip galvanized razor base with continuous extruded UV-resistant virgin PVC coating. Available in black, green and grey to blend with gardens, villas and residential settings. PVC layer isolates moisture, UV and corrosives, slowing oxidation. Precision trimming keeps all blade tips exposed, retaining cutting deterrence and anti-climb performance – integrating anti-corrosion, decoration and protection.
Product Specification
|
Model |
Blade Thickness (mm) |
Core Wire Diameter (mm) |
Barb Spacing (mm) |
Blades per Meter |
Coil Diameter (mm) |
Standard Length per Roll (m) |
|
BTO-10/12/16/18/22/28/30 |
0.50 |
2.5 |
26 |
380 |
450 |
10-50 |
|
0.50 |
2.5 |
26 |
380 |
500 |
||
|
0.50 |
2.5 |
33 |
300 |
600 |
||
|
0.60 |
3.0 |
34 |
290 |
700 |
||
|
0.50 |
2.5 |
45 |
220 |
800 |
||
|
0.60 |
3.0 |
45 |
220 |
900 |
|
Model |
Blade Length (mm) |
Blade Width (mm) |
Blade Thickness (mm) |
Core Wire Diameter (mm) |
Barb Spacing (mm) |
Coil Diameter (mm) |
Blades per Loop |
Standard Length per Roll (m) |
|
CBT-60 |
21.0 |
15.0 |
0.50 |
2.5 |
26 |
600 |
63 |
10-50 |
|
CBT-65 |
21.0 |
15.0 |
0.60 |
2.5 |
26 |
650 |
70 |
Material
This composite razor wire adopts a dual-layer high-quality material structure with stable and reliable performance. The inner base consists of standard hot-dip galvanized razor strips and high-tensile galvanized core wires, which feature high structural hardness, firm blade adhesion and excellent tensile resistance, providing solid mechanical defense foundation. The outer protective layer is made of upgraded modified anti-UV virgin PVC plastic, which has strong weather aging resistance, good flexibility and tight fitting performance. Different from ordinary recycled PVC materials, this premium coating is not easy to fade, crack or peel under long-term outdoor sunlight and rain erosion, maintaining long-term flat and beautiful appearance while providing comprehensive anti-corrosion protection for the inner metal substrate.
Product Application
Balancing high-level anti-theft performance and landscape compatibility, PVC Coated Razor Fence Wire is widely used in civil landscape security scenarios. It is specially applicable for villa garden perimeter anti-climb protection and private boundary isolation, scenic spot safety isolation fences to standardize tourist activity areas and protect landscape integrity, park security wall anti-intrusion reinforcement, residential district boundary safety protection, as well as orchard and plantation anti-theft protective wall upgrading, realizing the dual functions of safety defense and environment beautification.
Production Process

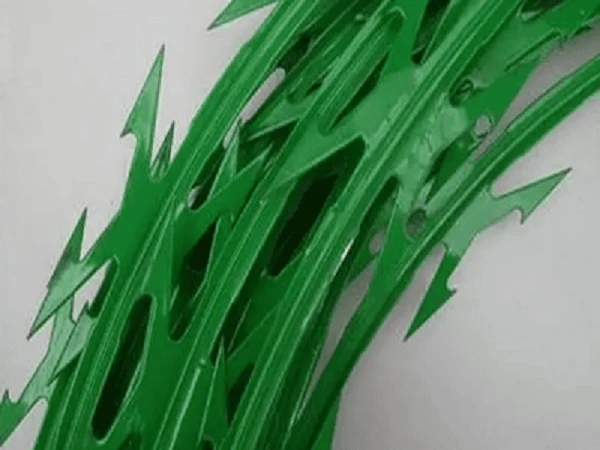

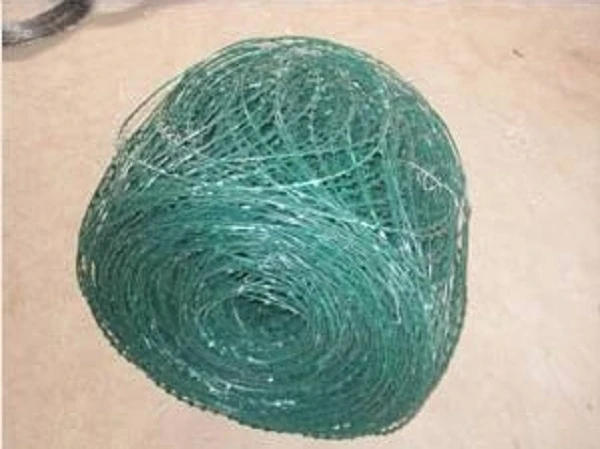

The product adopts mature and precise composite molding process to ensure both defensive performance and appearance quality: firstly, prepare qualified finished galvanized concertina or flat razor wire as the base material; secondly, implement full-surface continuous extrusion coating to uniformly wrap the entire strip and core wire with PVC material; thirdly, use special customized molds to trim and remove residual PVC from all blade sharp points to expose complete sharp teeth; fourthly, adopt circulating water cooling technology to rapidly solidify and shape the plastic coating for tight and firm fitting; finally, conduct strict appearance and structural inspection before standardized coiling and carton or pallet packaging for transportation and storage.
Precaution for Use
Operators must wear professional anti-cut protective gloves during installation to avoid scratches from exposed sharp razor blades. Avoid violent friction and scratching with sharp tools to prevent PVC coating peeling and damage, which may expose the inner metal layer and cause rusting. Do not overstretch the wire to prevent plastic layer cracking and structural deformation. For long-term outdoor use, regularly clean surface dust and stains to maintain color gloss and coating integrity. Store finished products in dry and ventilated environments to avoid damp stacking and coating aging.
Compare with Other Products
Compared with ordinary full galvanized razor wire, PVC coated razor fence wire has better UV resistance, anti-fading performance and landscape adaptability, solving the problem of single metal appearance and easy surface oxidation. Unlike pure decorative fence wires without defense ability, it retains complete sharp blade deterrence and anti-climb performance. Although the production cost is slightly higher than ordinary galvanized razor wire, its dual advantages of anti-corrosion durability and aesthetic decoration make it uniquely suitable for residential, garden and scenic high-standard security scenarios that cannot be replaced by traditional single-function security wires.
