Firmstone (Tianjin) International Limited is one of the leading manufacturers and suppliers of farming wire for y trellis in vineyard in China. We are committed to providing high quality customized products for global clients. If you're going to buy durable farming wire for y trellis in vineyard made in China, welcome to get pricelist from our factory.
Y Trellis Vineyard Farming Wire – professional high-tensile galvanized wire for orchard and vineyard Y-shaped trellis support systems. Upgraded hard-drawing strengthening and heavy-duty hot-dip galvanizing for excellent anti-stretching performance and structural rigidity, resisting continuous pulling pressure from fruit clusters and vines. Thick zinc layer withstands rain, UV and temperature changes, maintaining straight stable tension without sagging, loosening or deformation. Perfectly fits Y-trellis structure, delivering reliable long-term support and reducing maintenance for modern standardized vineyards.
Product Specification
|
Wire Diameter (mm) |
Tensile Strength Min (MPa) |
Tensile Strength Max (MPa) |
Zinc Coating Min (g/m2) |
Zinc Coating Max(g/m2) |
Zinc Coating Ultra Max (g/m2) |
Elongation Min (%) |
Packing (Kg) |
Typical Applications |
|
0.15 |
300 |
550 |
10 |
40 |
/ |
3%-25% |
SPOOL, COIL |
Crafts, fine mesh, binding small items |
|
0.20-0.50 |
300 |
2000 |
10 |
40 |
/ |
3%-25% |
SPOOL, COIL |
Fine mesh, handicrafts, floral wire,cables |
|
0.50-1.00 |
300 |
2000 |
10 |
40 |
/ |
3%-25% |
SPOOL, COIL(1KG-350KG) |
Fine mesh, handicrafts, floral wire,cables |
|
1.00-1.20 |
340 |
1800 |
10 |
40 |
/ |
3%-25% |
SPOOL, COIL(1KG-800KG) |
Fine mesh, handicrafts, floral wire,cables |
|
1.20 |
340 |
1800 |
10 |
200 |
220 |
3%-25% |
COIL (1KG-1000KG) |
Binding wire, fencing mesh, agriculture |
|
1.30 |
340 |
1800 |
10 |
180 |
240 |
3%-25% |
COIL (1KG-1000KG) |
Fine mesh, handicrafts, floral wire,cables |
|
1.40 |
340 |
1800 |
10 |
195 |
240 |
3%-25% |
COIL (1KG-1000KG) |
Binding wire, fencing mesh, agriculture |
|
1.50 |
340 |
1800 |
10 |
220 |
240 |
3%-25% |
COIL (1KG-1000KG) |
Chain link fence, gabion mesh, construction |
|
1.60 |
340 |
1800 |
20 |
230 |
280 |
3%-25% |
COIL (1KG-1000KG) |
Cable armoring, construction binding, fencing |
|
1.70 |
340 |
1800 |
20 |
230 |
280 |
3%-25% |
COIL (1KG-1000KG) |
Cable armoring, construction binding, fencing |
|
1.80 |
340 |
1800 |
20 |
230 |
280 |
3%-25% |
COIL (1KG-1000KG) |
Heavy duty fencing, agricultural use |
|
2.00 |
340 |
1800 |
25 |
240 |
400 |
3%-25% |
COIL (1KG-1000KG) |
Barbed wire, chain link, construction ties |
|
2.50 |
340 |
1800 |
25 |
260 |
400 |
3%-25% |
COIL (1KG-1000KG) |
Gabion boxes, heavy fencing, cable armoring |
|
3.00 |
340 |
1800 |
30 |
275 |
400 |
3%-25% |
COIL (1KG-1000KG) |
Stone cage netting, heavy duty applications |
|
3.50 |
340 |
1800 |
30 |
275 |
450 |
3%-25% |
COIL (1KG-1000KG) |
Heavy industrial use, large mesh fencing |
|
4.00 |
340 |
1800 |
30 |
280 |
450 |
3%-25% |
COIL (1KG-1000KG) |
Heavy cable armoring, structural applications |
|
5.00-8.00 |
340 |
1800 |
40 |
280 |
450 |
3%-25% |
COIL (1KG-1000KG) |
Heavy industrial use, large mesh fencing |
Material
This agricultural trellis wire adopts high-quality industrial-grade raw materials tailored for orchard outdoor environments. The inner core is made of high-tensile low carbon steel wire with refined internal molecular structure after professional hard-drawing treatment, ensuring ultra-stable tensile performance and strong load-bearing capacity without brittle deformation. The entire wire surface is covered with a thick and compact hot-dip galvanized coating. Different from ordinary thin galvanized layers, the heavy zinc coating forms a comprehensive anti-corrosion protective barrier, effectively isolating outdoor moisture, acidic rain and orchard dust, significantly improving outdoor weather resistance and extending the service life under perennial continuous load conditions.
Product Application

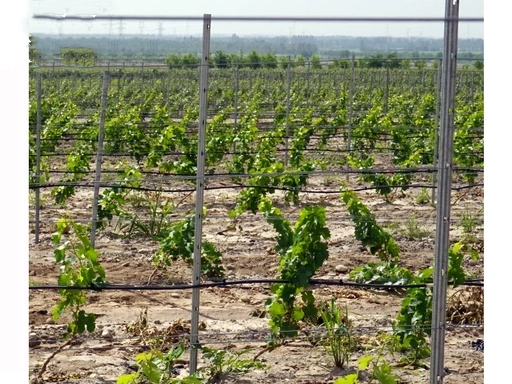

Specially optimized for orchard support scenarios, this Y trellis farming wire is mainly applied to grape vineyard Y-type trellis frame tension and fixing systems. It is widely used for fruit tree branch tension support, orchard climbing plant binding and fixing, as well as agricultural greenhouse trellis frame construction. It provides stable linear tension support for various perennial climbing fruit trees, effectively bearing branch and fruit weight, standardizing orchard planting patterns and improving overall ventilation and light transmission conditions.
Production Process
The product adopts standardized agricultural dedicated production process to balance strength and durability: firstly, conduct multi-pass hard drawing of steel wire to upgrade tensile grade and stabilize load-bearing performance; secondly, complete full surface derusting and cleaning to remove oxide layers and impurities; thirdly, implement heavy hot-dip galvanizing treatment to form thick anti-aging and anti-corrosion coating; fourthly, perform precise straightening treatment to eliminate wire bending and ensure flat tensioning effect; finally, complete length inspection, standardized coiling and bulk packaging for farm engineering shipment.
Precaution for Use
During trellis installation, avoid excessive over-tensioning beyond the wire's bearing range to prevent wire breakage under subsequent fruit load. Do not scratch the galvanized coating with sharp tools during construction to avoid local rust spots. Regularly check wire tension before and after fruit maturity to adjust sagging wires in time. Clean accumulated dust and fallen fruit residues on the wire surface routinely to maintain long-term anti-corrosion performance.
Compare with Other Products
Compared with ordinary hot-dip and electro-galvanized wires, this Y trellis farming wire has higher tensile strength and thicker zinc coating, with stronger anti-aging and anti-sagging performance for perennial orchard load-bearing. Different from general high-tensile wires for industrial protection, it is professionally optimized for linear tension straightness and agricultural outdoor corrosion resistance. It features more stable load-bearing performance than common binding wires, being the most dedicated and cost-effective special supporting wire for standardized vineyard Y trellis systems.
